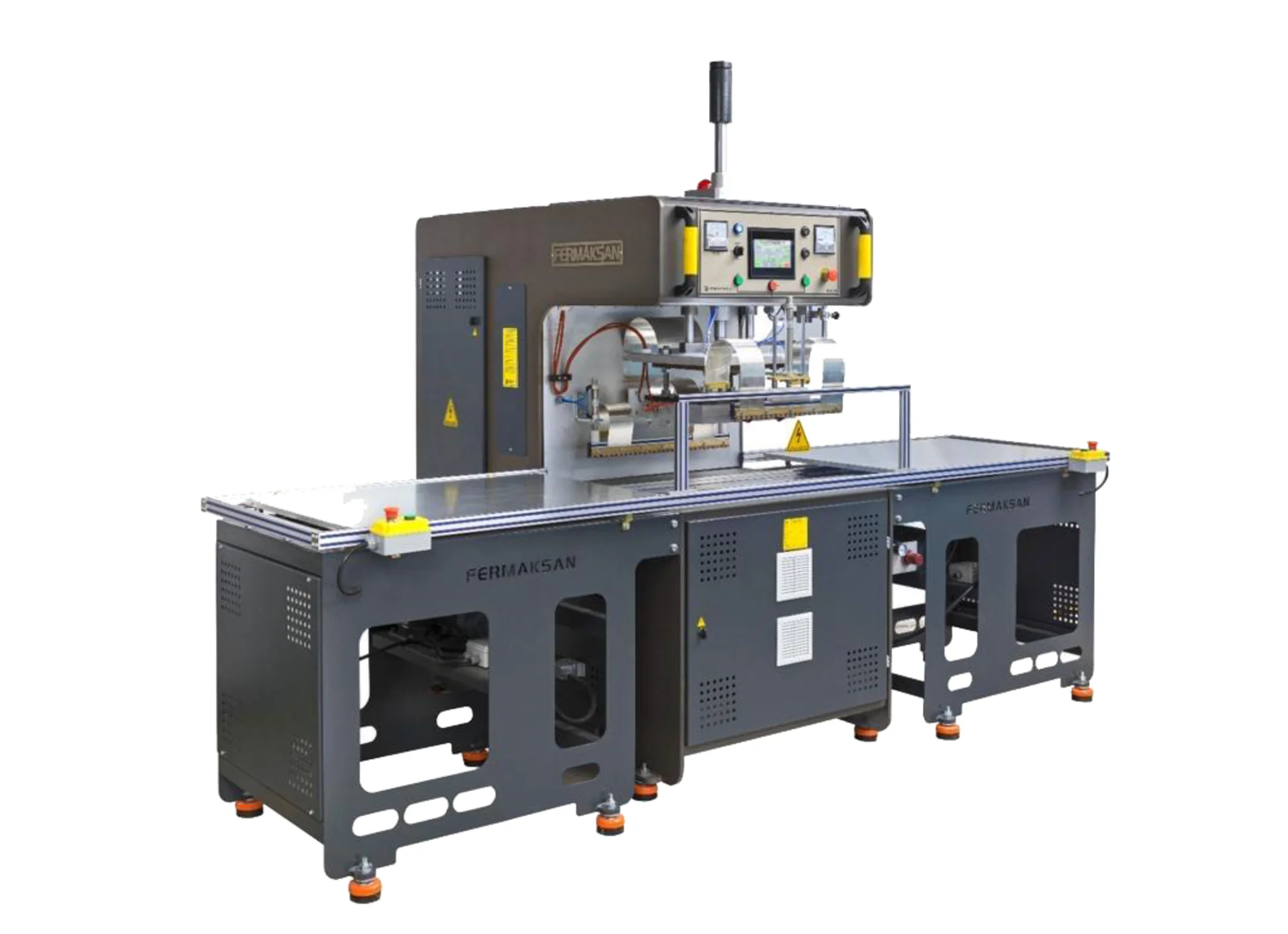

TR 100 OH

Automatic Movement High Frequency Welding Machine

Manufactured with a 10 kVA power capacity, the TR 100 OH is an automatically traveling machine engineered to deliver fast and flawless welding processes. Its dual-shuttle drive system offers maximum operational comfort and outstanding ease of use for the operator. Thanks to its variable speed control feature, it allows for precise process adjustments, making it the ideal solution for operations requiring high production volumes.

Offering both hydraulic and pneumatic operation options, the TR 100 OH caters to a wide range of industrial applications. With its heavy-duty chassis architecture and high-precision welding technology, it ensures maximum quality and efficiency in production while adapting perfectly to the demanding needs of diverse sectors.

Key Features


Automatic Motion and Dual-Shuttle Drive System

  • Dual-Station Advantage: The dual-shuttle system delivers high-precision positioning capability and an exceptionally practical working environment for the operator.

  • Mass Production Oriented: The automatic traveling mechanism maximizes processing speed and overall efficiency, particularly in high-volume production lines.


High Performance and Powerful Welding Capability

  • Homogeneous Power Distribution: The 10 kVA high power output ensures extremely strong and perfectly homogeneous weld seams, even across large surface areas.

  • Speed and RPM Control: The variable speed operation feature allows for process speed optimization, making production stages more flexible and efficient.


Flexible Modular Solutions

  • Hybrid Infrastructure: Hydraulic and pneumatic operating systems perfectly adapt to diverse material types and production variations.

  • Wide Range of Models: With six different model choices, it offers fully customizable solutions tailored to the specific production needs of your facility.


Wide Range of Industrial Applications

  • Advanced HF Technology: Fully compatible with various material types, this high-frequency welding technology is engineered to meet the stringent demands of diverse industrial sectors.

  • Maximum Structural Strength: Precise and reliable welding processes ensure the highest level of durability, airtight sealing, and quality in the final product.

Technical Specifications

Alt Tabla/Bottom Plate 700 x 990 mm
Üst Tabla/Top Plate 300 x 400 mm
Çalışma Şekli/Working Principle Pnömatik / Pneumatic
Jeneratör Çıkış Gücü/Output Power of Generator 10 kVA
Çalışma Gerilimi/Operating Voltage 3 x 220V 50 Hz
Gerilim Ayar Sahası/Voltage Fixing Range 195 x 235 V
Giriş Gücü/Input Power Pnömatik/Pneumatic: 13 kVA
Osilatör Tipi/Oscillator Type Lambalı / Lamp
Osilatör Soğutma/Oscillator Cooling Hava ile soğutma / With air cooling
Doğrultma/Correction Silikon diyot / Silicon diode
Frekans/Frequency 27.12 MHz ± 1%
Ağırlık/Weight 1050 kg
Makine Ebatları (DxGxY)/Machine Dimensions (L/W/H) 1695 x 3230 x 2160 mm

Usage Areas


Stationery Industry

Secretary pads, Folders, Mouse pads, Business card album, PVC-based stationery varieties


Label Industry

Jean labels, Washing instructions, Promotional and brand labels, All PVC artificial leather-based toys, All PVC inflatable products


Automotive Industry

Carpet mat heel pads, Hood insulation pads, Auto seat covers, Door interior trims


Packaging Industry

Home textile packaging, Knitwear apparel packaging, Sock packaging, Blister packaging, All PVC-based packaging varieties


Textile Industry

Flock printing, PVC reflector printing, PVC foamed embossing



KIRTASİYE SANAYİ
MEDİKAL SANAYİ
ETİKET SANAYİ
OTOMOTİV SANAYİ
